Product Description
The MY-3000 series of electric actuated ball valve is high energy efficient and long service product, is widely applied HVAC water system for on-off control. It has two parts, actuator and valve. The actuator is used synchronous motor with good performance. It is also built-in limit switch. The motor(power consumption of 6w) starts when valve turned on or off. The valve open/close time is 5~15s which is much more energy saving compared with two-wire electric valve, as well as much longer service life.
Specifications
Medium: Cool/heat water or 60% glycol
Caliber: DN15,DN20,DN25,DN32, DN315,DN320,DN325, DN332
Structure: Two way or Three way
Operating Mode:on/off or 3-point control (24VAC)
Power Supply:AC220V,AC24V
Power Consumption:6W (during valve position change)
Operating time: 5~15s
Nominal Pressure:1.6MPa
Media temperature:2℃~95℃( 100~250℃ optional).
Pressure differential: 1.0 MPa
Material:
Valve: Brass, (stainless steel optional)
Ball valve: Stainless steel
Valve rod: Brass
Valve seat: PTFE
Seal: Dengqen rubber& PTFE
Protective housing: IP65
Maintainance: Free maintainance
Ways: Two way valve, three way valve down output, three way side output.
Connection: Pipe thread G
Model availability
|
Model |
Spec. |
Main dimensions |
KV(m3/h) |
|||||
|
DN(mm) |
Inner Thread(G) |
L |
H |
H1 |
W |
|||
|
Two way |
MY-3000-DN215 |
15 |
1/2” |
54 |
25 |
|
|
11 |
|
MY-3000-DN220 |
20 |
3/4” |
63 |
29 |
|
|
20 |
|
|
MY-3000-DN225 |
25 |
1” |
68 |
32 |
|
|
60 |
|
|
MY-3000-DN232 |
32 |
1/2” |
81 |
37 |
|
|
80 |
|
|
Three way |
MY-3000-DN315 |
15 |
1/2” |
|
|
|
|
11 |
|
MY-3000-DN320 |
20 |
3/4” |
72 |
27 |
|
39 |
20 |
|
|
MY-3000-DN325 |
25 |
1” |
84 |
32 |
|
59 |
60 |
|
|
MY-3000-DN332 |
32 |
1/2” |
|
|
|
|
80 |
|

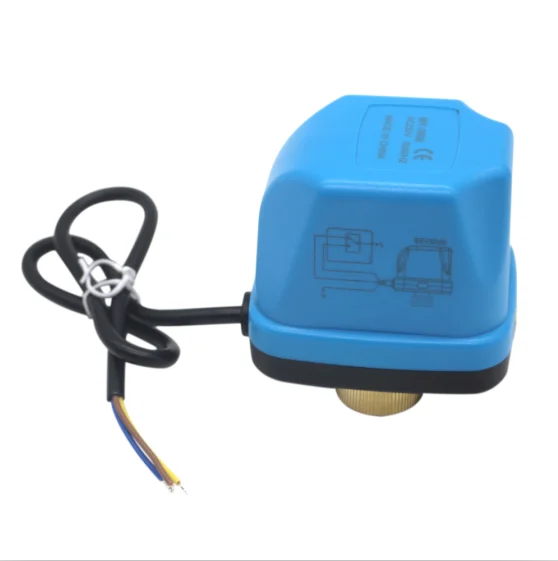

Product Display
45pcs/carton
Carton size:478mmX300mmX248mm
Delivery: 15 days upon receipt of full payment
Warranty: Two years
